Description:

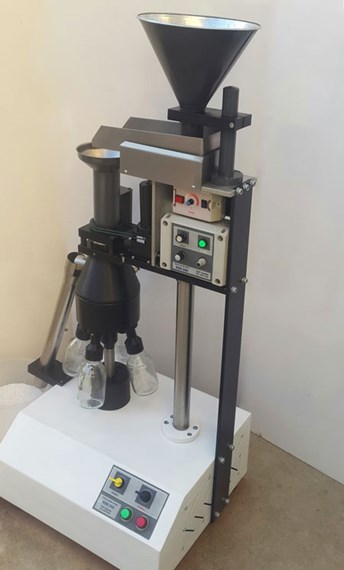

The rotary divider is used for the precise division of the laboratory samples to parts with equal amounts. The used samples can be powder, granule, or a combination of both. These devices consist of two separate sets of dividers. The first set is the dividers that not only divide the primary sample to several equal samples but also pours another half of the sample to a separate container.



The RSD-500 and RSD-700 models are examples of Rotary dividers. RSD-500 gives four equal samples and ½ of the original sample separately. RSD-700 divides the original sample into six equal samples and a sample half the weight of the original sample.



 The second set of the rotary dividers divide the total original sample into either four samples « RSD-4», six samples «RSD-6» eight samples « RSD-8», or ten samples « RSD-10».
The feeder capacity in the rotary dividers is variable from 2 to 18 kg depending on needs.


  Ротационные делители проб  МОДЕЛЬ: RSD - 700

                        Ротационные делители проб

                          МОДЕЛЬ: RSD - 700




The feeder system in this type of devices is a vibratory feeder equipped with discharge control volume.

In all models of the rotary dividers, the rotation speed of sampler units are variable, which can be adjusted from 10 to 300 rpm. All of the models clean the main and internal parts of the device automatically after dividing the sample and prevent pollution and mixing with the subsequent samples. All of the parts in contact with the sample are rustproof and made of industrial steel or resistant polymers.
These devices are used in mining, pharmaceutical, petrochemical, food, agricultural, and metallurgy industries, as well as other industrial and research laboratories







 Ротационные делители проб  МОДЕЛЬ: RSD - 700

Ротационные делители проб

МОДЕЛЬ: RSD - 700



   Ротационные делители проб  МОДЕЛЬ: RSD - 700

                         Ротационные делители проб

                              МОДЕЛЬ: RSD - 700


 Ротационные делители проб  МОДЕЛЬ: RSD - 700



                          Ротационные делители проб

                             МОДЕЛЬ: RSD - 700



заголовок спецификации
рекомендуется для

преимущества

TECHNICAL DATA:           Rotary Sample divider

RSD- 10

RSD- 8

RSD- 6

RSD- 4

RSD- 700

RSD- 500

Models

220 V - 50 Hz

110 V - 60 Hz

220 V - 50 Hz

110 V - 60 Hz

220 V - 50 Hz

110 V - 60 Hz

220 V - 50 Hz

110 V - 60 Hz

220 V - 50 Hz

110 V - 60 Hz

220 V - 50 Hz

110 V - 60 Hz

Voltage

120 Watt

100 Watt

80 Watt

60 Watt

100 Watt

80 Watt

Power

1: 10

1: 8

1: 6

1: 4

1: 6+ 1(%50)

1: 4+ 1(%50)

Division Ratio

12 Kg

10 Kg

8 Kg

6 Kg

10 Kg

6 Kg

Max. Feeder Capacity

3 mm

5 mm

10 mm

10 mm

8 mm

5 mm

Max. particle size
