Laboratory magnet separator

Laboratory magnet separator

Gol

AUTOMAG - 75 & AUTOMAG - 92
Laboratory magnet separator
Model :
AUTOMAG - 81

durum: Stokta var
miktar








dscp başlığı

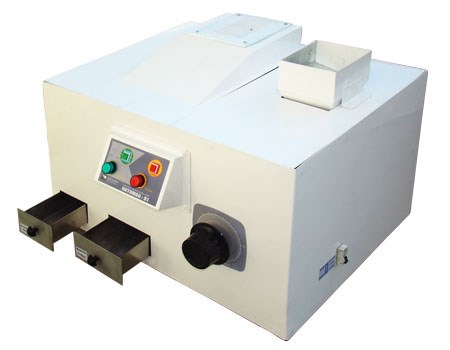

 Laboratory magnet separator  Model : AUTOMAG - 81

Laboratory magnet separator
Model : AUTOMAG - 81



Description:


Magnet separators has been used for recovery or elimination of mineral particles in an applied magnetic field on mineral powders, in which particle size can be a few millimeters. AUTOMAG model has been designed and built to process minerals containing ferromagnetic minerals.

Laboratory magnet separator  Model : AUTOMAG - 81

Laboratory magnet separator
Model : AUTOMAG - 81



 Laboratory magnet separator  Model : AUTOMAG - 81

AUTOMAG produces a magnetic field with an adjustable intensity from low to high intensity, and it works according to this magnetic field. AUTOMAG can process raw materials with grain size of 70 microns to 2 millimeters. By reducing or increasing the field intensity we can separate different minerals. AUTOMAG can also process 250 g of sample in each batch, or it can process 5 Kg of samples continuously. AUTOMAG systems are available in three models: AUTOMAG-75, AUTOMAG-81, AUTOMAG-92.



Laboratory magnet separator  Model : AUTOMAG - 81

Laboratory magnet separator
Model : AUTOMAG - 81



 Laboratory magnet separator  Model : AUTOMAG - 81

Laboratory magnet separator
Model : AUTOMAG - 81









şartname başlığı
avantajları
TECHNICAL DATA AUTOMAG 75 AUTOMAG 81 AUTOMAG 92
Power Supply 220 V, 50, 60 Hz , 4Kw 220 v , 50, 60 Hz , 4K w 220 V , 50, 60 Hz , 5 KW
Magnetic intensity adjustable 0 – 1.8 Tesla 0 – 1.8 Teals 0 – 2 Tesla
Separating method Wet Separation Dry separation Wet - DRY
Capacity 5 Liter / batch 1 Kg / batch 5 Liter 1 Kg / batch
Feed size 70m– 0.5 mm 70 m – 2 mm 70–0.5 mm / 70 m – 2 m
Approx. dimension(cm) 70 L × 65 W × 50 H 70 L × 65 W × 50 H 80 L × 70 W × 60 H
Approx. weight 82 Kg 82 Kg 97 Kg
