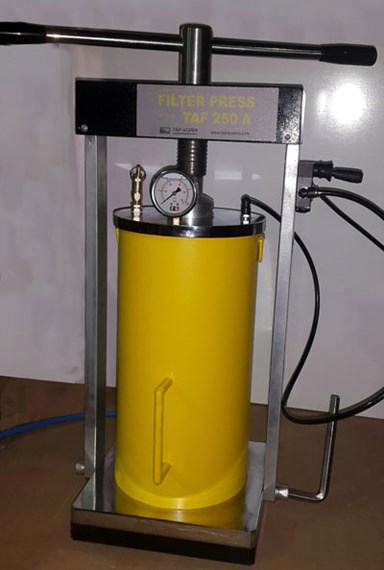

Laboratory PRESSURE FILTER
Model : TAF -250 A
|
|
Laboratory PRESSURE FILTER
Model : TAF -250 A
|
|
Description
This system is designed in accordance with filtration standards in laboratory scale. Filtration container is made of stainless steel and can tolerate high pressure. Also it can filter up to 8 liters pulp in each test.
|
|
|
|
Laboratory PRESSURE FILTER
Model : TAF -250 A
|
|
Laboratory PRESSURE FILTER
Model : TAF -250 A
Pressure applied on cylinder is shown by pressure gauge. During the filtration, water and other filtered liquids exclude from the container, and solid particles will remain on the filter fabric as a cake which can extract them after exiting the container.
|
|
|
|
|
Laboratory PRESSURE FILTER
Model : TAF -150
|
|
|
şartname başlığı
avantajları
| TECHNICAL DATA |
TAF - 150 |
TAF – 200 |
 |
Firtlation volume / Batch |
6 Liter |
12 Liter |
|
Cylinder material |
Stainless steel |
Stainless steel |
|
Firtlation area base |
180 |
310 |
|
Firtlation frame |
Stainless steel |
Stainless steel |
|
Valves / safety valves |
Stainless steel |
Stainless steel |
|
Coupling rods / cups |
Stainless steel |
Stainless steel |
|
Pressure gauge |
P |
P |
|
Pressure tested |
14 ATM |
14 ATM |
|
Firtlation pods |
Anti Acid |
Anti Acid |
|
Firtlation pods pressure tested on frame |
8 ATM |
8 ATM |
|
Filtering cloth porosity |
1 – 20 Micron |
1 – 20 Micron |
|
Filtering cloth temperature tested |
70°c |
70°c |
|
Hydraulic coupling for Cylinder |
Optional |
Optional |
|
Approx. weight without cabinet( Kg ) |
30 |
45 |
Dezavantajları
Description
This system is designed in accordance with filtration standards in laboratory scale. Filtration container is made of stainless steel and can tolerate high pressure. Also it can filter up to 8 liters pulp in each test.
