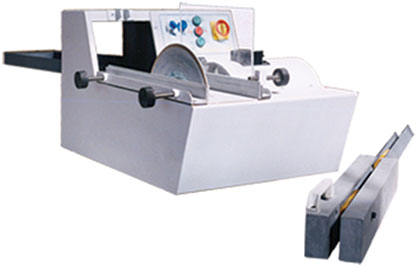

Model : CORIER - 230 CR Laboratory Cutting Machine Model : CORIER - 230 CR
Laboratory Cutting Machine Model : CORIER - 230 CR
Description This machine has been designed and made for longitudinal cutting of the core drilling and cutting the two ends of core. With this machine, all the old systems will be actually put aside.
The system with length of less than 80 cm can cut core samples with 120 cm length. Length of this machine compared to other devices of this type is three times smaller and its weight has been reduced 25%. Direct power cutting system is the main characteristic of CORIER-230 CR.
TECHNICAL DATA / CORIER – 230 CR
Electric motor
380 v , 50 Hz , 2200 w
CORE fixture / liner
0.1 mm accuracy
CORE cutting length
max : 120 Cm
CORE cutting Dia.
40 – 120 mm
Cutting wheels
Diamond / 230 – 250 mm
Auto feed system
optional
Cooling system
open system / circulating
Cooling tank
60 liters
Electric pump
220 V / 90 W
Dimension ( cm )
80 L × 60 w × 50 H
Approx. weight
85 Kg
