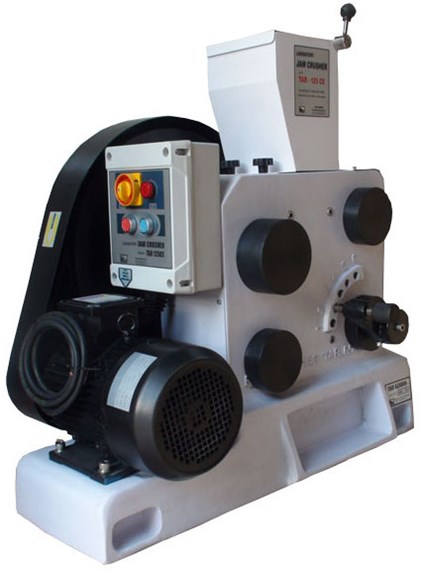

TA.R - 125 ES
Model : TA.R - 125FP
Specification jaw removable system
for cleaning to avoid contamination.
TECHNICAL DATA
TA.R 125 FP
TA.R 125 CE
TA.R 125 ES
TA.R 125
Electric motor
5.5 K w / 380 V / 50& 60 Hz
4.5 kw / 380 v/50& 60 Hz
4 kw / 380 v/50& 60 Hz
3kw / 380 v / 50 & 60 Hz
Optimum Capacity
250 Kg / h
200 Kg / h
180 Kg / h
150 Kg / h
Max. Capacity
300 Kg / h
220 Kg / h
Max. Feed size
< 110 mm
< 100 mm
< 90 mm
< 80 mm
Product size ( mm )
2 – 30 Adjustable
5 – 30 Adjustable
Aperture dimension
120 × 150 mm
110 × 130 mm
100 × 120 mm
90 × 100 mm
Jaw material
MN – Steel
MN – steel
Jaw releasing system
yes
No
Main frame
Anti oxidant super alloy
Cast Anti oxidant Alloy
Cast Iron
Feeder
Stainless Steel
Steel
Produce collector Box
Cleaner Brush
Control panel
Compact special
Electric
Dust collector
Optional
----------
Optional jaws
Chromium steel /
tungsten carbide
Chromium steel
Approx. dimensions
55 W × 90 L × 80 H
45 W × 90 L × 70 H
40 W × 90 L × 70 H
40 W × 80 L × 70 H
Approx. weight
285 Kg
250 Kg
230 Kg
200 Kg
