DIGITAL DIRECT SHEAR TEST

DIGITAL DIRECT SHEAR TEST

Model: DIGITEST - 10

 DIGITAL DIRECT SHEAR TEST
Model:  DIGITEST - 10

Status: in stock
Quantity








Description


 DIGITAL DIRECT SHEAR TEST Model : DIGITEST - 10

DIGITAL DIRECT SHEAR TEST
Model : DIGITEST - 10





Description

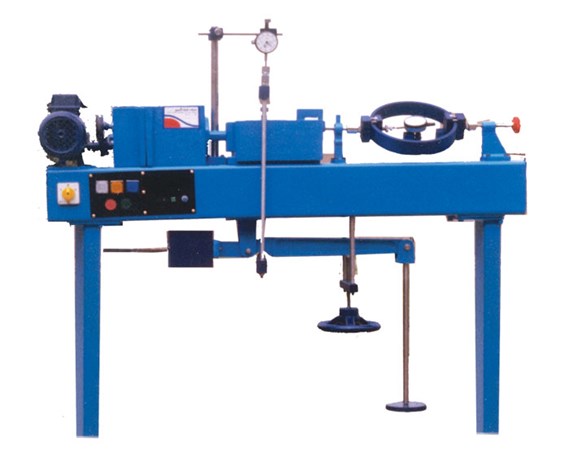

This device is designed for solid direct shear tests which is equipped with an electronic drive system with variable speed.

The momentum of power transmission piston is shown digitally. Shear test molds used in this device are standard molds with dimensions of 10×10.







Compare Technical data
Technical Data
     TECHNICAL DATA / DIGITEST - 10
ELECTRIC GEAR MOTOR 220 v - 380 v / 50 – 60 Hz
Power 180 W
Gear Spindle speed 120 RPM
Control Board Electric / Digital
Transmission gauge 0.01 mm division
Soil mold size 10 × 10 Cm
Main moving parts Stainless steel
Pressure Ring Standard Calibrated / Special Alloy
Weights Complete for standard tests
Approx. Weight 80 Kg
