Semi Automatic thin section preparation system

Semi Automatic thin section preparation system

Model: MICROPLAN - TR

Semi Automatic thin section preparation system

Model: MICROPLAN - TR

Status: in stock
Quantity








Description



Semi Automatic thin section preparation system Model: MICROPLAN - TR

              Semi Automatic thin section preparation system

                                Model: MICROPLAN - TR



Automatic Vacuum Sample Holder for cutting

           Automatic Vacuum Sample Holder for cutting





Description:

In order to observe, identify and diagnose the minerals forming the rock, mineral, and ceramic samples and all kind of composites under the microscope, thin sections should be prepared. The thickness of thin layer of materials should be 30-50 microns. To do so we need methods and accurate devices. With MICROPLAN systems, we can prepare microscopic thin sections automatically and semi-automatically in mineralography, petrography, ceramic and materialographic laboratories.





















In MICROPLAN systems, the TX models are fully automated and equipped with a microprocessor and digital display,and all the cutting and grinding processes are performed automatically.



Vacuum Sample Holder for grinding

Vacuum Sample Holder for grinding



Semi Automatic thin section preparation system Model: MICROPLAN - TR

            Semi Automatic thin section preparation system

                                Model: MICROPLAN - TR



Semi Automatic thin section preparation system Model: MICROPLAN - TR

Semi Automatic thin section preparation system

                                Model: MICROPLAN - TR

Thin section preparation sample



Thin section preparation sample

Thin section preparation sample


Thin section preparation sample












         Thin section preparation sample





















  Thin section preparation sample





Semi Automatic thin section preparation system Model: MICROPLAN - TR





 Dewatering and Vacuum pressure regulator Box Model: "Univac- 4"

Dewatering and Vacuum pressure regulator Box

Model: "Univac- 4"

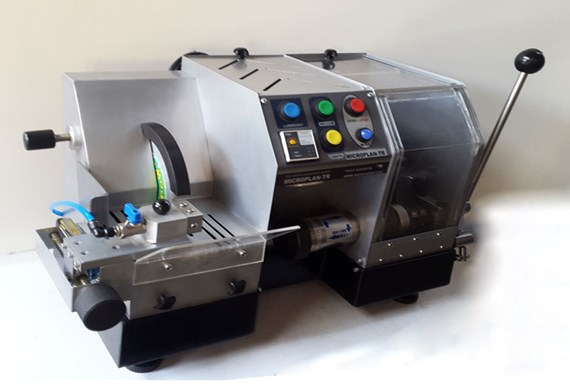

                              MICROPLAN-TR: is a super-modern system with a stainless steel body and frame, and generally made of stainless steel. it has the best performance in any working conditions and standard laboratories. The system is equipped with a liner that has an accuracy of 0.1 mm and a micrometer with an accuracy of 5 microns. Dewatering and Vacuum pressure regulator Box Model: "Univac- 4"

Automatic thin section preparation system Model: MICROPLAN - TR

Semi Automatic thin section preparation system with

   Dewatering and Vacuum pressure regulator Box Model: "Univac- 4"     and    Vacuum unit for automatic Holders Model: "Vacumet 850"





Thin section preparation sample

      Thin section preparation sample

 Stainless Steel sensitive micrometer 5 micron accuracy Stainless Steel sensitive micrometer 5 micron accuracy

Thin section preparation sample

Thin section preparation sample






   MICROPLAN-TR: is a super-modern system with a stainless steel body and frame, and generally made of stainless steel. it has the best performance in any working conditions and standard laboratories. The system is equipped with a liner that has an accuracy of 0.1 mm and a micrometer with an accuracy of 5 microns.
   MICROPLAN-TR: is a super-modern system with a stainless steel body and frame, and generally made of stainless steel. it has the best performance in any working conditions and standard laboratories. The system is equipped with a liner that has an accuracy of 0.1 mm and a micrometer with an accuracy of 5 microns.
   MICROPLAN-TR: is a super-modern system with a stainless steel body and frame, and generally made of stainless steel. it has the best performance in any working conditions and standard laboratories. The system is equipped with a liner that has an accuracy of 0.1 mm and a micrometer with an accuracy of 5 microns.
   MICROPLAN-TR: is a super-modern system with a stainless steel body and frame, and generally made of stainless steel. it has the best performance in any working conditions and standard laboratories. The system is equipped with a liner that has an accuracy of 0.1 mm and a micrometer with an accuracy of 5 microns.

Compare Technical data
Technical Data













TECHNICAL DATA

MICROPLAN – TA

MICROPLAN – TM

MICROPLAN – TR

MICROPLAN – TX

Electric motor

750 W / 220 V / 50 , 60 Hz

1100 W / 220 V / 50 , 60 Hz

1100 W / 220 V / 50 , 60 Hz

1500 W / 220 V / 50 , 60 Hz

Cutting Blade

8” (200 mm) Diamond Blade.

8” (200 mm) Diamond Blade.

8” (200 mm) Diamond Blade.

8” (200 mm) Diamond Blade.

Grinding Cup

150 mm Diamond Cup

150 mm Diamond Cup

150 mm Diamond Cup

150 / 200 mm Diamond Cup

Micrometer accuracy

7 Micron Stainless Steel / Brass

5 Micron Stainless Steel

5 Micron Stainless Steel

5 Micron Stainless Steel with stepmotor

Cutting unit accuracy

0.4 mm

0.2 mm

0.1 mm

0.1 mm

Cutting unit system

mechanical

Mechanical Rail / Liner Base

Mechanical Rail / Liner Base

Automatic

Thinning / Grinding system

manual

manual

Manual with stopper

Automatic / Digital Stepmotor controller

Control system

manual

manual

Manual / adjustable

Microprocessor control

Thin Section Holder

Auto holder with Vacuum pressure 1 + 1 Sample

Auto holder with Vacuum pressure 1 + 1 Sample

Auto holder with Vacuum pressure 1 + 3 Sample

Auto holder with Vacuum pressure 1 + 3 Sample

Vacuum Regulator Box/ Filter

Univac 2

Univac 2S

Univac 4

Autovac 4

Vacuum Pressure Pump

½ Hp , 750 mbar Vacuum Pump

¾ Hp , 800 mbar Vacuum Pump

¾ Hp , 850 mbar , 2 Stage Vacuum pump

1 Hp , Vacumet 900 , 2 Stage Vacuum pump

Circulator Cooling unit

30 Liters , Polymer tank , 60 W Circulating Pump

40 Liters , Polymer tank , 60 W Circulating Pump

40 Liters Stainless Steel Tank , 90 W Circulating Pump

40 Liters Stainless Steel Tank , 90 W Circulating Pump

Base / Frame

Cast Iron / Steel

Cast Iron / Stainless Steel

Cast Iron Oxidant Alloy / Stainless Steel

Cast Anti Oxidant Alloy / Stainless Steel

Approx. weight

50 Kg

60 Kg

70 Kg

95 Kg

Approx. dimensions ( Cm )

30 W × 60 L × 28 H

35 W × 70 L × 32 H

35 W × 75 L × 35 H

40 W × 95 L × 35 H
order product

To order the product, please click here:

Order Product
