Laboratory Grinding & Polishing machine

Laboratory Grinding & Polishing machine

Гол

Model : ROTOPOL- 3S

Laboratory Grinding & Polishing machine

Model : ROTOPOL- 3S

положение дел: в наличии
количество








название dscp
 ROTOPOL-3 and ROTOPOL-3S are multi-purpose laboratory machines that can grind and polish laboratories samples manually. Two grinding and polishing axes with possibility of quick switching the discs and using multiple discs.

 Laboratory Grinding . Polishing machine  Model : ROTOPOL- 3S

Laboratory Grinding & Polishing machine

Model : ROTOPOL- 3S

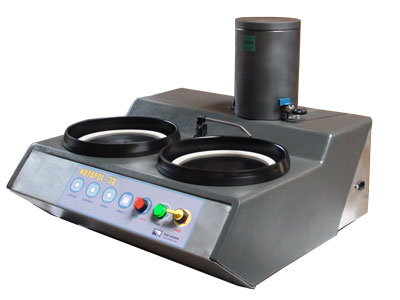

ROTOPOL- 3S with feeder for Alumina Suspension and lubricant.


 integrated and robust body design, suspension unit and feeder , feasibility of using the abrasive powders, abrasive sheets, polishing powders and suspensions are the features of this system. ROTOPOL-3 and ROTOPOL-3S contains a groove and a smooth alloy disc for grinding the alloy discs and a polyethylene disc for installation of polishing fabrics that can be replaced easily if needed.

 Laboratory Grinding , Polishing machine  Model : ROTOPOL- 3S

Laboratory Grinding & Polishing machine

Model : ROTOPOL- 3S

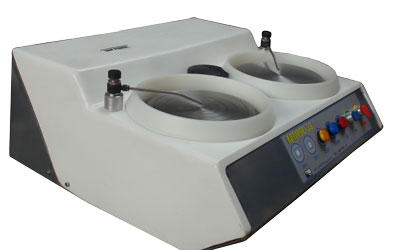

ROTOPOL- 3S without feeder for Alumina Suspension.

 Laboratory Grinding , Polishing machine  Model : ROTOPOL- 3S

Laboratory Grinding & Polishing machine

Model : ROTOPOL- 3S

ROTOPOL- 3S without feeder for Alumina Suspension.



 Laboratory Grinding & Polishing machine  Model : ROTOPOL- 3S



Laboratory Grinding & Polishing machine

Model : ROTOPOL- 3S

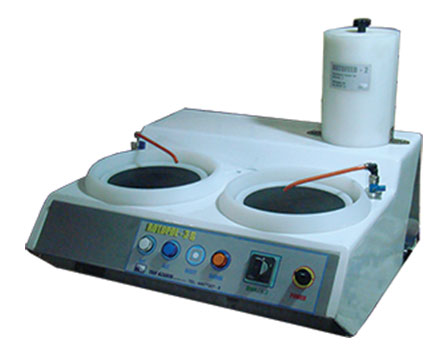

ROTOPOL- 3S with feeder for Alumina Suspension and lubricant.

 Laboratory Grinding & Polishing machine  Model : ROTOPOL- 3S



Laboratory Grinding & Polishing machine

Model : ROTOPOL- 3S

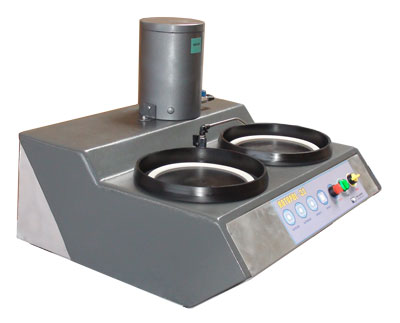

ROTOPOL- 3S with feeder for Alumina Suspension and lubricant.







заголовок спецификации
преимущества



THECHNICAL DATA

ROTOPOL – 4R

ROTOPOL - 3R

ROTOPOL – 3S

Main Electric Motor

750 W / 220 V servo motor.

750 W / 24 V DC motor.

550 W / 24 V DC motor.

Automatic Sample Holder Motor

24 v - 80 w DC Gear Motor.

24 v - 60 w DC Gear Motor.

_________

Grinding / polishing axis

2 axis

2 axis

2 axis

Polishing / Grinding disk Dia.

230 mm

230 mm

230 mm

Sample Holder Capacity

4 Polished section , 3 Thin section

3 Polished section , 3 Thin section

_________

Disk Speed

50 - 1200 RPM

150 - 1000 RPM

150 - 1000 RPM

Speed control accuracy

± 3 RPM

± 10

± 15 RPM

Time display control

Digital 0 – 60 min.

Mechanical 0 – 60 min.

_________

Main frame

Stainless Steel

Anti-oxidant Alloy

Partly Stainless Steel

Suspension Lubricant Feeder

2 Liter Stainless Steel

2 Liter Stainless Steel

2 Liter Pu

Polishing Disk

Super composite Disk / Pu Disk

Super composite Disk / Pu Disk

Pu Disk

Grinding Disk

Super composite Disk / Cast Iron Disk

Cast Iron Disk

Cast Iron Disk

Approx. dimension ( Cm )

85 L×70 w×65 H

85 L×70 w×55 H

80 L×65 w×45 H

Approx. Wight

95 Kg

85 Kg

65 Kg
