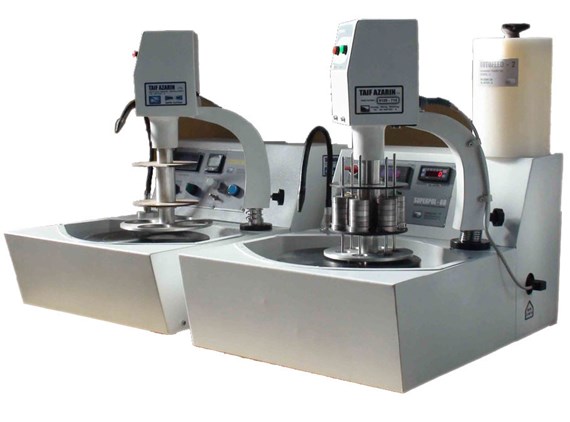

AUTOMATIC POLISHING SYSTEM

AUTOMATIC POLISHING SYSTEM

Гол

Model : SUPERPOL- 6D

AUTOMATIC POLISHING SYSTEM
Model : SUPERPOL- 6D

положение дел: в наличии
количество








название dscp







AUTOMATIC POLISHING SYSTEM

MODEL: SUPERPOL-6D



description

Generally, polishing disc’s diameter is 300 mm, And according to the sample type, which can be alloy, non-metallic minerals, metallic minerals, rock or ceramic, disc rotation rate can be set between 100 to 1000 RPM. Automatic sample holder which can hold samples with a diameter of 25-40 mm, can polish 4-6 samples simultaneously in every round.
Automatic sample holder’s electromotor rotates the samples slowly and in the opposite direction of polishing disc, and provides high polishing quality samples (SUPER VISING). Preparing the thin-polish sections is another function of the system.





AUTOMATIC POLISHING SYSTEM , metallographic polishing machine , MODEL: SUPERPOL-6D

AUTOMATIC POLISHING SYSTEM

MODEL: SUPERPOL-6D





            AUTOMATIC POLISHING SYSTEM , metallographic polishing machine , MODEL: SUPERPOL-6D

                   AUTOMATIC POLISHING SYSTEM

                            MODEL: SUPERPOL-6D



 STANDARD SAMPLE HOLDER   FOR POLISHING SYSTEM



STANDARD SAMPLE HOLDER " 6 sampels"

  FOR AUTOMATIC POLISHING SYSTEM









STANDARD SAMPLE HOLDER   FOR POLISHING SYSTEM

          STANDARD SAMPLE HOLDER " 6 sampels"

              FOR AUTOMATIC POLISHING SYSTEM




 STANDARD SAMPLE HOLDER   FOR POLISHING SYSTEM

       STANDARD SAMPLE HOLDER

  FOR AUTOMATIC POLISHING SYSTEM



 STANDARD SAMPLE HOLDER " 6 sampels"    FOR AUTOMATIC POLISHING SYSTEM

             STANDARD SAMPLE HOLDER " 6 sampels"

                 FOR AUTOMATIC POLISHING SYSTEM



 STANDARD SAMPLE HOLDER   FOR POLISHING SYSTEM

STANDARD SAMPLE HOLDER " 6 sampels"

  FOR AUTOMATIC POLISHING SYSTEM



 STANDARD SAMPLE HOLDER   FOR POLISHING SYSTEM

STANDARD SAMPLE HOLDER

  FOR AUTOMATIC POLISHING SYSTEM




STANDARD SAMPLE HOLDER " 6 sampels"    FOR AUTOMATIC POLISHING SYSTEM

STANDARD SAMPLE HOLDER " 6 sampels"

  FOR AUTOMATIC POLISHING SYSTEM



 STANDARD SAMPLE HOLDER " 6 sampels"    FOR AUTOMATIC POLISHING SYSTEM

STANDARD SAMPLE HOLDER " 6 sampels"

  FOR AUTOMATIC POLISHING SYSTEM






polished section

polished section









 Generally, polishing disc’s diameter is 300 mm, And according to the sample type, which can be alloy, non-metallic minerals, metallic minerals, rock or ceramic, disc rotation rate can be set between 100 to 1000 RPM. Automatic sample holder which can hold samples with a diameter of 25-40 mm, can polish 4-6 samples simultaneously in every round.
Automatic sample holder’s electromotor rotates the samples slowly and in the opposite direction of polishing disc, and provides high polishing quality samples (SUPER VISING). Preparing the thin-polish sections is another function of the system.








 Generally, polishing disc’s diameter is 300 mm, And according to the sample type, which can be alloy, non-metallic minerals, metallic minerals, rock or ceramic, disc rotation rate can be set between 100 to 1000 RPM. Automatic sample holder which can hold samples with a diameter of 25-40 mm, can polish 4-6 samples simultaneously in every round.
Automatic sample holder’s electromotor rotates the samples slowly and in the opposite direction of polishing disc, and provides high polishing quality samples (SUPER VISING). Preparing the thin-polish sections is another function of the system.








 Generally, polishing disc’s diameter is 300 mm, And according to the sample type, which can be alloy, non-metallic minerals, metallic minerals, rock or ceramic, disc rotation rate can be set between 100 to 1000 RPM. Automatic sample holder which can hold samples with a diameter of 25-40 mm, can polish 4-6 samples simultaneously in every round.
Automatic sample holder’s electromotor rotates the samples slowly and in the opposite direction of polishing disc, and provides high polishing quality samples (SUPER VISING). Preparing the thin-polish sections is another function of the system.








 Generally, polishing disc’s diameter is 300 mm, And according to the sample type, which can be alloy, non-metallic minerals, metallic minerals, rock or ceramic, disc rotation rate can be set between 100 to 1000 RPM. Automatic sample holder which can hold samples with a diameter of 25-40 mm, can polish 4-6 samples simultaneously in every round.
Automatic sample holder’s electromotor rotates the samples slowly and in the opposite direction of polishing disc, and provides high polishing quality samples (SUPER VISING). Preparing the thin-polish sections is another function of the system.








заголовок спецификации
преимущества
TECHNICAL DATA / SUPERPOL- 6D
750 w 220 v / dc main electric motor
24 v 30 w dc motor for automatic sample holder
standard sample holder" 6 samples"
sample holder speed controller
4 size different sample holder ( optional )
300 mm polyethylene polishing disc
300 mm cast iron grinding disc
lubricant – suspension semi automatic feeder / liter
lubricant valves / lines: stainless steel / pu
electronic speed controller unit
digital wheel speed display
digital timer 0 – 99 min
wheel speed 100 - 1000 rpm
electronic brake
main frame / polishing sink : stainless steel
approx. dimension ( cm ): 70 l× 52 w ×45 h
approx. wight: 85 kg
