Laboratory Cutting Machine

Model: LASERCUT – 300

Laboratory Cutting Machine

Model : LASERCUT – 300

Status: in stock

Quantity

tags Cutting machine

Description

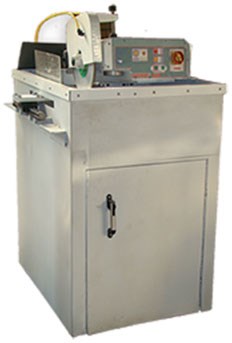

Laboratory Cutting Machine Model : LASERCUT – 300

Laboratory Cutting Machine

Model : LASERCUT – 300

Description:

Cutting the rock and mineral samples with large dimensions and high degree of hardness needs high power and larger diamond blade.

LASERCUT-300 is a powerful device that has a diamond blade with maximum diameter of 300 mm. Some features of this system include: cutting blade height adjustment system, cutting unit and additional start system that is controllable by a foot pedal. A sample holder with it can hold and bind different dimension samples. Cutting feeder of the system is manual and automatic feeder can be provided if needed.

Compare Technical data

Technical Data

TECHNICAL DATA / LASERCUT – 300
	Electric motor / Italy:	380V , 50Hz Ital. motors
	Power:	2200 – 3000 w
	Diamond cut off wheel Dia.	250 , 280 , 300 mm
	Circulating Lubricant system	60 Liters / 220 v E. Pump
	Valves , lubricant lines	Pu. / stainless steel
	Cutting table and rail	liner with 0.1mm accuracy
	Control board / panel	electric / electronic board
	Cutting light	gear screw system
	Cut off wheel light adjusting	foot pedal / hand switch
	Approx. dimension (Cm)	100 L × 70 W × 120 h
	Approx. weight	125Kg
