Laboratory DISK MILL
Model: SUPER MILL - 500
Laboratory DISK MILL
Model:
SUPER MILL - 500
Status
:
in stock
Quantity
1
2
3
4
5
6
7
8
9
10
11
12
add to cart
tags
Laboratory Mills
Description
Technical Data
order product
Description

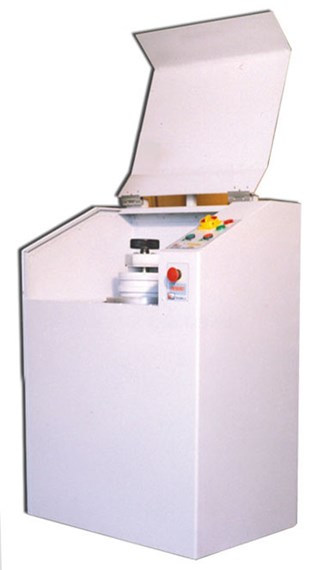

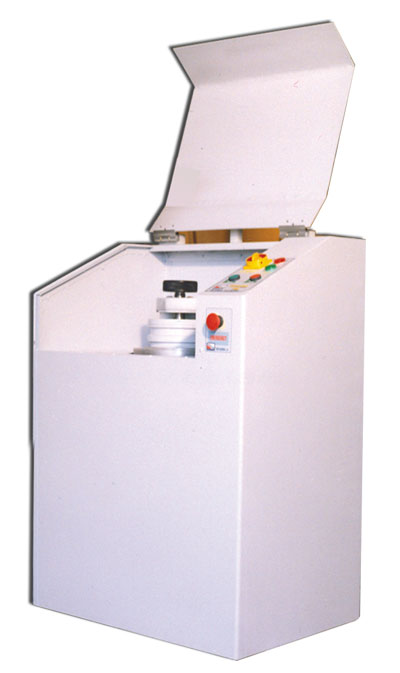

Laboratory DISK MILL
Model:
SUPER MILL - 500
One of the most effective ways to pulverize and sample preparation is using the laboratory disk mill. The system can turn all kinds of rocks and minerals, even hard and brittle ones, in to powder in minimum time. One of the main characteristics of the system is powdering with uniform granulation.
Compare Technical data
Technical Data
TECHNICAL DATA / SUPER MILL 500
Electric motor
220 V - 380 V , 50 & 60 Hz
Power
1500 W
Vibrating frequency
1500 Hz
Feed material
Brittle – Hard Brittle – Semi Hard – Semi Brittle
Feed size
< 20 mm
Product size
200 - 220 mesh optimum
Optimum capacity/ Batch
50 – 100 gr
Max capacity
200 gr
Milling CUP ( Optional )
Chromium steel / Tungsten carbide / agate / high alumina
Control board
Electric / Electronic
Time Display / control
Mechanical / digital / 0-30 min
Approx. dimensions ( Cm )
85 L × 65 W × 90 H
Approx. weight
190 Kg
